Accessories for every type of handling
Professional and Reliable Clamps
Professional clamps for cranes, excavators, self-propelled machines, saw units, and chip buckets. HSP Gripen, made in Sweden, offers a complete range for any application and situation. Rotators, connecting arms, and connection accessories for machinery.
The arm design allows for a gentle grip on logs, ensuring the load is securely positioned and does not shift. The clamp guarantees fast and safe handling of all types of materials. Since all our clamps are low-profile and relatively lightweight, they also provide greater lifting height and easier transport.
• Double arm
• Conical expander pins
• Reliable and easy to use
• Excellent quality
• Powder-coated finish
• Made from Hardox steel
017
A 730
B 1040
C 470
D 90
E 740
F 370
G 325
024
A 728
B 1365
C 531
D 100
E 788
F 439
G 380
| TECHNICAL DATA | 017 | 024 |
|---|---|---|
| Maximum working pressure | 210 bar | 230 bar |
| Tip-to-tip closing force | 9,3 kN | 12,3 kN |
| Opening time at 70 l/min | 0,55 s | 1 s |
| Closing time at 70 l/min | 0,9 s | 1,6 s |
| Loading area | 0,17 mq | 0,24 mq |
| Maximum load | 2000 kg | 2500 kg |
| Weight | 95 kg | 140 kg |

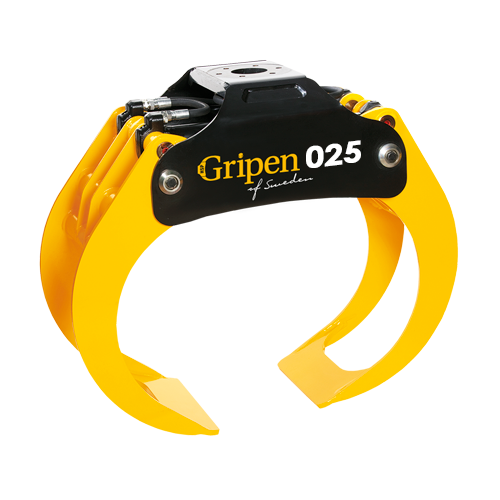

The standard clamp is, in many ways, the most representative product of the range. The double cylinder* allows for a low and even load, reducing wear. The arm design ensures a gentle grip on logs, securing the load effectively and preventing movement. The clamp guarantees fast and safe handling of all types of materials.
• Double cylinder*
• Double arm
• Conical expander pins
• Reliable and easy to use
• Excellent quality
• Powder-coated finish
• Made from Hardox steel
*Models 015 and 020 have a single cylinder.
015 STD
A 685 mm
B 1170 mm
C 510 mm
D 90 mm
E 740 mm
F 397 mm
G 355 mm
A 645 mm
B 1400 mm
C 510 mm
D 95 mm
E 780 mm
F 397 mm
G 355 mm
A 690 mm
B 1450 mm
C 540 mm
D 110 mm
E 800 mm
F 488 mm
G 434 mm
A 635 mm
B 1690 mm
C 530 mm
D 110 mm
E 830 mm
F 488 mm
G 434 mm
A 600 mm
B 1880 mm
C 565 mm
D 120 mm
E 885 mm
F 526 mm
G 472 mm
A 630 mm
B 2070 mm
C 610 mm
D 140 mm
E 970 mm
F 526 mm
G 472 mm
A 715 mm
B 2390 mm
C 695 mm
D 160 mm
E 1110 mm
F 526 mm
G 472 mm
| TECHNICAL DATA | 015 STD | 020 STD | 025 STD | 028 STD | 035 STD | 040 STD | 055 STD |
|---|---|---|---|---|---|---|---|
| Maximum working pressure | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar |
| Tip-to-tip closing force | 9,3 kN | 8,7 kN | 17 kN | 16,7 kN | 16,1 kN | 16,2 kN | 16,0 kN |
| Opening time at 70 l/min | 0,4 s | 0,4 s | 0,8 s | 0,9 s | 1,0 s | 1,1 s | 1,7 s |
| Closing time at 70 l/min | 0,6 s | 0,6 s | 1,4 s | 1,5 s | 1,6 s | 1,7 s | 2,5 s |
| Loading area | 0,15 mq | 0,20 mq | 0,25 mq | 0,28 mq | 0,35 mq | 0,40 mq | 0,55 mq |
| Maximum load | 2000 kg | 2000 kg | 3500 kg | 3500 kg | 5000 kg | 5000 kg | 5000 kg |
| Weight | 120 kg | 130 kg | 225 kg | 230 kg | 255 kg | 285 kg | 325 kg |
The most powerful clamp, designed for lifting heavy loads and demanding tasks. It is particularly suitable for use with skidders, forestry machines, and similar equipment. The steel plates are thicker, the rotator plate is larger, and the lower arm tubes are reinforced, making the Heavy Duty the strongest clamp in the range.
• Double cylinder*
• Double arm
• Conical expander pins
• Reliable and easy to use
• Excellent quality
• Powder-coated finish
• Made from Hardox steel
*Models 015 and 020 have a single cylinder.
A 690 mm
B 1450 mm
C 540 mm
D 110 mm
E 800 mm
F 488 mm
G 434 mm
A 635 mm
B 1690 mm
C 530 mm
D 110 mm
E 830 mm
F 488 mm
G 434 mm
A 600 mm
B 1880 mm
C 565 mm
D 120 mm
E 885 mm
F 526 mm
G 472 mm
A 630 mm
B 2070 mm
C 610 mm
D 140 mm
E 970 mm
F 526 mm
G 472 mm
A 715 mm
B 2390 mm
C 695 mm
D 160 mm
E 1110 mm
F 526 mm
G 472 mm
| TECHNICAL DATA | 025 STD | 028 STD | 035 STD | 040 STD | 055 STD |
|---|---|---|---|---|---|
| Maximum working pressure | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar |
| Tip-to-tip closing force | 17 kN | 16,7 kN | 16,1 kN | 16,2 kN | 16,0 kN |
| Opening time at 70 l/min | 0,8 s | 0,9 s | 1,0 s | 1,1 s | 1,7 s |
| Tempo di chiusura a 70 l/min | 1,4 s | 1,5 s | 1,6 s | 1,7 s | 2,5 s |
| Loading area | 0,25 mq | 0,28 mq | 0,35 mq | 0,40 mq | 0,55 mq |
| Maximum load | 3500 kg | 3500 kg | 5000 kg | 5000 kg | 5000 kg |
| Weight | 250 kg | 260 kg | 285 kg | 320 kg | 365 kg |
The standard clamp is, in many ways, the most representative product of the range. The double cylinder* allows for a low and even load, reducing wear. The arm design ensures a gentle grip on logs, securing the load effectively and preventing movement. The clamp guarantees fast and safe handling of all types of materials.
• Double cylinder*
• Double arm
• Conical expander pins
• Reliable and easy to use
• Excellent quality
• Powder-coated finish
• Made from Hardox steel
*Models 015 and 020 have a single cylinder.
015 STD
A 685 mm
B 1170 mm
C 510 mm
D 90 mm
E 740 mm
F 397 mm
G 355 mm
A 645 mm
B 1400 mm
C 510 mm
D 95 mm
E 780 mm
F 397 mm
G 355 mm
A 690 mm
B 1450 mm
C 540 mm
D 110 mm
E 800 mm
F 488 mm
G 434 mm
A 635 mm
B 1690 mm
C 530 mm
D 110 mm
E 830 mm
F 488 mm
G 434 mm
A 600 mm
B 1880 mm
C 565 mm
D 120 mm
E 885 mm
F 526 mm
G 472 mm
A 630 mm
B 2070 mm
C 610 mm
D 140 mm
E 970 mm
F 526 mm
G 472 mm
A 715 mm
B 2390 mm
C 695 mm
D 160 mm
E 1110 mm
F 526 mm
G 472 mm
| TECHNICAL DATA | 015 STD | 020 STD | 025 STD | 028 STD | 035 STD | 040 STD | 055 STD |
|---|---|---|---|---|---|---|---|
| Maximum working pressure | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar | 230 bar |
| Tip-to-tip closing force | 9,3 kN | 8,7 kN | 17 kN | 16,7 kN | 16,1 kN | 16,2 kN | 16,0 kN |
| Opening time at 70 l/min | 0,4 s | 0,4 s | 0,8 s | 0,9 s | 1,0 s | 1,1 s | 1,7 s |
| Closing time at 70 l/min | 0,6 s | 0,6 s | 1,4 s | 1,5 s | 1,6 s | 1,7 s | 2,5 s |
| Loading area | 0,15 mq | 0,20 mq | 0,25 mq | 0,28 mq | 0,35 mq | 0,40 mq | 0,55 mq |
| Maximum load | 2000 kg | 2000 kg | 3500 kg | 3500 kg | 5000 kg | 5000 kg | 5000 kg |
| Weight | 120 kg | 130 kg | 225 kg | 230 kg | 255 kg | 285 kg | 325 kg |
